Send InquiryTrochoid Pump Model 4 (Large capacity)
Trochoid Pump Model 4 (Large capacity) Specification
- Features
- Heavy Duty
- Material
- Mild Steel
- Pressure
- High
- Usage
- Industrial
- Pump Type
- Trochoid Pump
About Trochoid Pump Model 4 (Large capacity)
Specifications
| Model / Item | Theoretical Displacement (cm3/rev) | Theoretical Discharge (L/min) | Max. Pressure (MPa) | Max. Revolution (min-1) | Approx. Weight (kg) | |
|---|---|---|---|---|---|---|
| 1000min-1 | 1200min-1 | |||||
| TOP-4100AM | 100 | 100 | 120 | 2 | 1,800 | 31 |
| TOP-4130AM | 130 | 130 | 156 | 2 | 1,800 | 33 |
| TOP-4150AM | 150 | 150 | 180 | 2 | 1,500 | 34 |
| TOP-4200AM | 200 | 200 | 240 | 2 | 1,500 | 37 |
| TOP-4250AM | 250 | 250 | 300 | 2 | 1,200 | 45 |
Performance Table
Standard discharge rate and required power at 1000 min-1| Model/Specifications | Discharge Rate (L/min) | Required Power (W) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Pressure (MPa) | Pressure (MPa) | |||||||||
| 0.1 | 0.5 | 1 | 1.5 | 2 | 0.1 | 0.5 | 1 | 1.5 | 2 | |
| TOP-4100AM | 115 | 113 | 112 | 110 | 109 | 1.4 | 2.26 | 3.43 | 4.49 | 5.6 |
| TOP-4130AM | 150 | 149 | 148 | 147 | 145 | 1.84 | 2.9 | 4.27 | 5.66 | 6.92 |
| TOP-4150AM | 174 | 172 | 169 | 166 | 162 | 2 | 3.12 | 4.6 | 6.2 | 7.7 |
| TOP-4200AM | 226 | 226 | 225 | 222 | 221 | 2.66 | 4.21 | 6.17 | 8.12 | 10.06 |
| TOP-4250AM | 277 | 273 | 269 | 265 | 260 | 3.22 | 5.12 | 7.49 | 9.86 | 12 |
Above data was taken by the oil:ISO-VG 46 at 40Celsius
Performance Table
Standard discharge rate and required power at 1200 min-1| Model / Specifications | Discharge Rate (L/min) | Required Power (W) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Pressure (MPa) | Pressure (MPa) | |||||||||
| 0.1 | 0.5 | 1 | 1.5 | 2 | 0.1 | 0.5 | 1 | 1.5 | 2 | |
| TOP-4100AM | 137 | 135 | 133 | 132 | 130 | 1.78 | 2.83 | 4.19 | 5.52 | 6.83 |
| TOP-4130AM | 180 | 179 | 178 | 177 | 174 | 2.16 | 3.5 | 5.12 | 6.8 | 8.55 |
| TOP-4150AM | 208 | 207 | 202 | 199 | 194 | 2.5 | 3.9 | 5.64 | 7.44 | 9.53 |
| TOP-4200AM | 273 | 271 | 268 | 263 | 262 | 3.32 | 5.2 | 7.56 | 9.92 | 12.48 |
| TOP-4250AM | 333 | 330 | 327 | 323 | 319 | 4 | 6.37 | 9.21 | 12.05 | 14.93 |
Above data was taken by the oil:ISO-VG 46 at 40Celsius
Price:
- 50
- 100
- 200
- 250
- 500
- 1000+
More Products in Trochoid Pumps Category
Bi-Rotational Pump 1RA-200
Material : Cast iron body
Pump Type : Other, Gear pump
Features : Birotational functionality compact design
Pressure : Variable pressure handling, Other
Usage : Other, Industrial applications
Seals Type : Standard industrial seals
Trochoid Pump with suction filter
Material : Cast Iron
Pump Type : Other, Trochoid Pump
Features : Compact design High efficiency
Pressure : High Pressure
Seals Type : Mechanical Seals

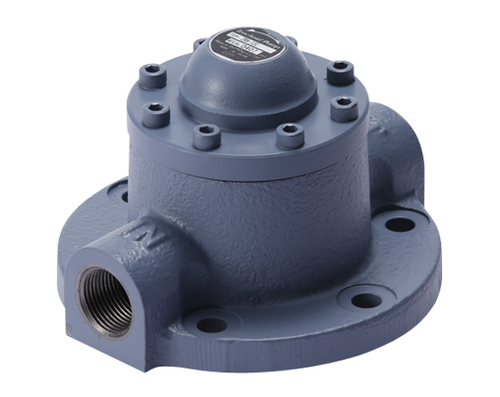

Bi-Rotational Pump 2RA
