Bi-Rotational Pump 2RA

Get a Price/Quote

Product Details:

Features Heavy Duty
Material Mild Steel
Pressure High
Usage Industrial
Pump Type Bi-Rotational Pump
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Bi-Rotational Pump 2RA Product Specifications

Features Heavy Duty
Material Mild Steel
Pump Type Bi-Rotational Pump
Pressure High
Usage Industrial

Product Description

Specifications

Model / Item	Theoretical Displacement (cm³/rev)	Theoretical Discharge (L/min)		Max. Pressure (MPa)	Max. Revolution (min^-1)	Approx. Weight (kg)
Model / Item	Theoretical Displacement (cm³/rev)	1500min	1800min	Max. Pressure (MPa)	Max. Revolution (min^-1)	Approx. Weight (kg)
TOP-2RA-4C	4	6	7.2	0.5	2,000	3.9
TOP-2RA-8C	8	12	14.4	0.5	2,000	4.2
TOP-2RA-12C	12	18	21.6	0.5	1,800	4.5

Performance Table

Standard discharge rate and required power at 1450 min^-1

Model / Specifications	Discharge Rate (L/min)					Required Power (W)
	Pressure (MPa)					Pressure (MPa)
	0.1	0.2	0.3	0.4	0.5	0.1	0.2	0.3	0.4	0.5
TOP-2RA-4C	5.6	5.5	5.5	5.4	5.4	75	111	148	184	220
TOP-2RA-8C	11.2	11.2	11.2	11.1	11.1	101	143	185	228	270
TOP-2RA-12C	16.4	16.3	16.3	16.3	16,2	138	202	263	325	390

Above data was taken by the oil:ISO-VG 46 at 40Celsius

PerformanceTable

Standard discharge rate and required power at 1750 min^-1

Model / Specifications	Discharge Rate (L/min)					Required Power (W)
	Pressure (MPa)					Pressure (MPa)
	0.1	0.2	0.3	0.4	0.5	0.1	0.2	0.3	0.4	0.5
TOP-2RA-4C	6.7	6.7	6.7	6.6	6.6	101	143	185	227	270
TOP-2RA-8C	13.6	13.5	13.5	13.4	13.4	126	177	230	281	334
TOP-2RA-12C	19.7	19.6	19.6	19.5	19.5	170	245	320	397	475

Above data was taken by the oil:ISO-VG 46 at 40Celsius

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Trochoid Pumps' category

Bi-Rotational Pump 1RA-200 Material : Cast iron body Pump Type : Other, Gear pump Features : Birotational functionality compact design Pressure : Variable pressure handling, Other Usage : Other, Industrial applications Seals Type : Standard industrial seals Power : Other, Hydraulic powerdriven Mounting Type : Flanged Discharge Pressure : High Working Temperature : Standard industry temperature range Standard : ISO Compliant Inlet/Outlet : Threaded connections Application : Other, Hydraulic systems Control System : Manual/Automatic Max Suction : Moderate suction capability Speed : Variable speed Suction Type : Positive suction Priming : Selfpriming Fuel Type : Other, None (hydraulicpowered) Flow Rate : Variable Voltage : None (unpowered)

Send Inquiry

Trochoid Pump with suction filter Material : Cast Iron Pump Type : Other, Trochoid Pump Features : Compact design High efficiency Pressure : High Pressure Seals Type : Mechanical Seals Power : 0.5 HP, Other Mounting Type : Base mounted Discharge Pressure : 1.2 MPa Working Temperature : Up to 80C Standard : ISO Standard Inlet/Outlet : Standard Size Application : Other, Industrial Control System : Automatic Max Suction : 0.5 MPa Speed : 1450 RPM Suction Type : Positive Displacement Priming : Selfpriming Fuel Type : Other, Hydraulic Oil Flow Rate : 10 L/min Voltage : 220 V

Send Inquiry

Bi-Rotational Pump 3RD Material : Mild Steel Pump Type : Other, BiRotational Pump Features : Heavy Duty Pressure : High, Other Usage : Industrial, Other

Send Inquiry

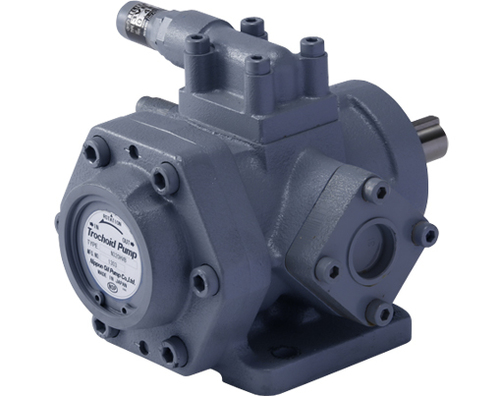

Trochoid Pump Model 3 (Intermediate capacity) Material : Mild Steel Pump Type : Trochoid Pump, Other Features : Heavy Duty Pressure : Other, High Usage : Industrial, Other
