Trochoid Pump 2_series

Get a Price/Quote

Product Details:

Features Heavy Duty
Material Mild Steel
Pressure High
Usage Industrial
Pump Type Trochoid Pump
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Trochoid Pump 2_series Product Specifications

Features Heavy Duty
Pump Type Trochoid Pump
Pressure High
Usage Industrial
Material Mild Steel

Product Description

Required Power of Trochoid Pump

Model / Item	1500min^-1 (50Hz)					1800min^-1 (60Hz)
	Theoretical Discharge (L/min)	Max. Pressure for Motor Output (MPa)				Theoretical Discharge L/min	Max. Pressure for Motor Output (MPa)
	Theoretical Discharge (L/min)	200W	400W	750W	1500W	Theoretical Discharge L/min	200W	400W	750W	1500W
TOP-203HBM	4.2	1.7	3.0	3.0	3.0	5.0	1.3	3.0	3.0	3.0
TOP-204HBM	6.0	1.2	3.0	3.0	3.0	7.2	0.9	2.3	3.0	3.0
TOP-206HBM	9.0	0.7	1.8	2.5	2.5	10.8	0.5	1.4	2.5	2.5
TOP-208HBM	12.0	0.5	1.3	2.5	2.5	14.4	0.3	1.0	2.3	2.5
TOP-210HBM	15.0	0.4	1.1	2.5	2.5	18.0	0.3	0.9	2.0	2.5
TOP-212HBM	18.0	0.3	0.9	2.0	2.0	21.6	-	0.7	1.6	2.0
TOP-216HBM	24.0	0.2	0.7	1.5	1.5	28.8	-	0.5	1.2	1.5
TOP-220HBM	30.0	-	0.4	1.2	1.2	36.0	-	0.3	0.9	1.2

Above data was taken by the oil:ISO-VG 46 at 40 Celsius

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Trochoid Pumps' category

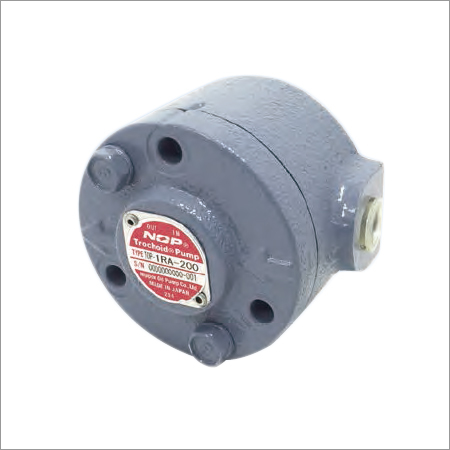

Bi-Rotational Pump 1RA-200 Pressure : Variable pressure handling, Other Material : Cast iron body Features : Birotational functionality compact design Pump Type : Other, Gear pump Usage : Other, Industrial applications Voltage : None (unpowered) Working Temperature : Standard industry temperature range Power : Other, Hydraulic powerdriven Standard : ISO Compliant Max Suction : Moderate suction capability Suction Type : Positive suction Speed : Variable speed Fuel Type : Other, None (hydraulicpowered) Priming : Selfpriming Seals Type : Standard industrial seals Flow Rate : Variable Control System : Manual/Automatic Application : Other, Hydraulic systems Inlet/Outlet : Threaded connections Discharge Pressure : High Mounting Type : Flanged

Send Inquiry

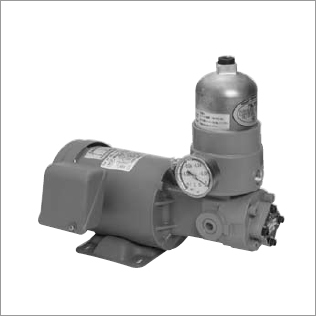

Trochoid Pump with suction filter Pressure : High Pressure Material : Cast Iron Features : Compact design High efficiency Pump Type : Other, Trochoid Pump Voltage : 220 V Working Temperature : Up to 80C Power : 0.5 HP, Other Standard : ISO Standard Max Suction : 0.5 MPa Suction Type : Positive Displacement Speed : 1450 RPM Fuel Type : Other, Hydraulic Oil Priming : Selfpriming Seals Type : Mechanical Seals Flow Rate : 10 L/min Control System : Automatic Application : Other, Industrial Inlet/Outlet : Standard Size Discharge Pressure : 1.2 MPa Mounting Type : Base mounted

Send Inquiry

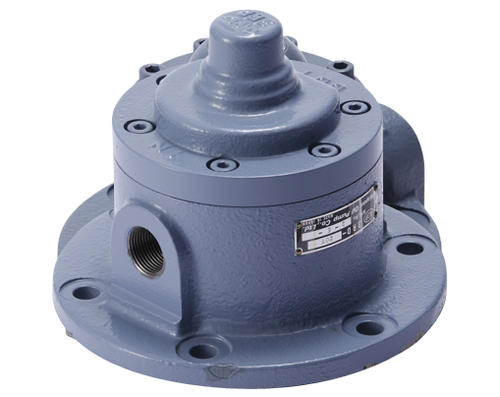

Bi-Rotational Pump 3RD Pressure : High, Other Material : Mild Steel Features : Heavy Duty Pump Type : Other, BiRotational Pump Usage : Industrial, Other

Send Inquiry

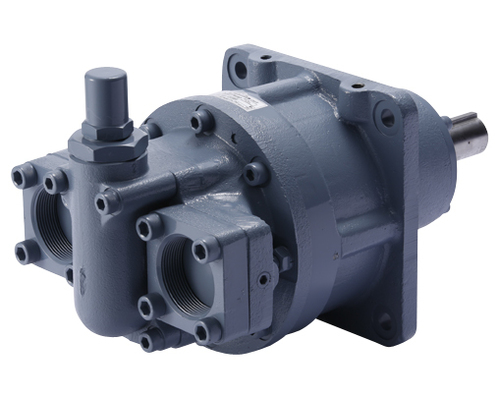

Trochoid Pump Model 4 (Large capacity) Pressure : Other, High Material : Mild Steel Features : Heavy Duty Pump Type : Other, Trochoid Pump Usage : Other, Industrial
